The grow bed might be the single most important component in your aquaponics setup. Pick the right one and your plants will take off; get it wrong and they’ll struggle no matter what else you do right. Something like a concrete container, for instance, will shift your water’s pH and make it tough to keep conditions favorable for your crops. Beyond chemistry, though, the grow bed’s job is to give your plants enough room to develop properly, and its size is tied directly to how many fish your system can support. Get the balance wrong in either direction and you’ll end up short-changing either your plants’ nutrition or your fish’s water quality. It’s usually the biggest physical component in the whole system, but it’s also where you’ll see the most payoff. The grow bed is where nitrifying bacteria live and do their work — if it’s undersized (not enough surface area for bacteria to colonize), ammonia in your water won’t get converted into nitrates the way it needs to.

What does a grow bed actually do?

Your grow bed has to be sized to match the rest of your system. There’s a direct relationship between your fish tank’s size and how large your grow bed needs to be, because the volume of fish waste produced determines how many plants the system can support. Fish generate ammonia, and bacteria living on your growing media convert that ammonia first into nitrites and then into nitrates, which is the form your plants can actually absorb as food. Stock too many fish or overfeed them and you’ll generate more ammonia and nitrate than your media can handle — without enough grow bed capacity, that excess will gradually poison the water your fish live in. Go too light on fish, on the other hand, and your plants won’t get enough nutrients to thrive.

As a starting benchmark, aim for roughly 50 square feet of media surface area per pound of full-grown fish, and about 8 gallons of tank water per pound of full-grown fish.

Here’s a worked example: say you plan to fill your media bed with expanded clay pebbles (hydroton), which offer roughly 70 square feet of surface area per cubic foot. A 16 cubic-foot bed filled with this media gives you a total surface area of about 1,120 square feet (16 × 70). Since you need roughly 50 square feet of surface area per pound of fish, dividing 1,120 by 50 tells you the bed can support about 22 pounds of fish. At 8 gallons per pound, that works out to a fish tank of around 176 gallons to properly support 22 pounds of fish alongside a 16 cubic-foot hydroton-filled grow bed.

Premium grow beds versus building your own

Here’s some good news: a budget-friendly, homemade grow bed can perform every bit as well as a pricier commercial one. What actually matters isn’t how much you spent — it’s whether the bed fits well with the rest of your system. That said, pay attention to what it’s built from. Water plus growing media adds up to serious weight, so your container needs to be sturdy enough to bear that load, and it obviously needs to hold water without leaking.

Supporting your grow bed

Plan for your grow bed to hold around 14 inches of growing media — that depth gives you the flexibility to grow a wide variety of plants. A lot of people like to mount the grow bed directly above the fish tank, since it cuts down on plumbing and keeps the whole system more compact. Just make sure your tank can actually bear that load, and keep in mind that you’ll periodically need access to check on your fish, which usually means cutting an opening that can weaken the tank’s structure. That doesn’t rule out this approach, though — the popular “chop and flip” method works well: you cut roughly a third off the top of an IBC tote, flip that piece over, and set it on top of the remaining base using the tote’s original steel cage as the support frame.

Stands for grow beds come in plenty of shapes and configurations, letting you keep your system’s footprint small while still keeping the bed securely supported above the tank. If you’re building your own, cinder blocks paired with sturdy 2×4 lumber tend to work well.

DIY grow bed ideas

Sourcing or building your own grow bed is easier than you might expect. Here are a few approaches worth considering.

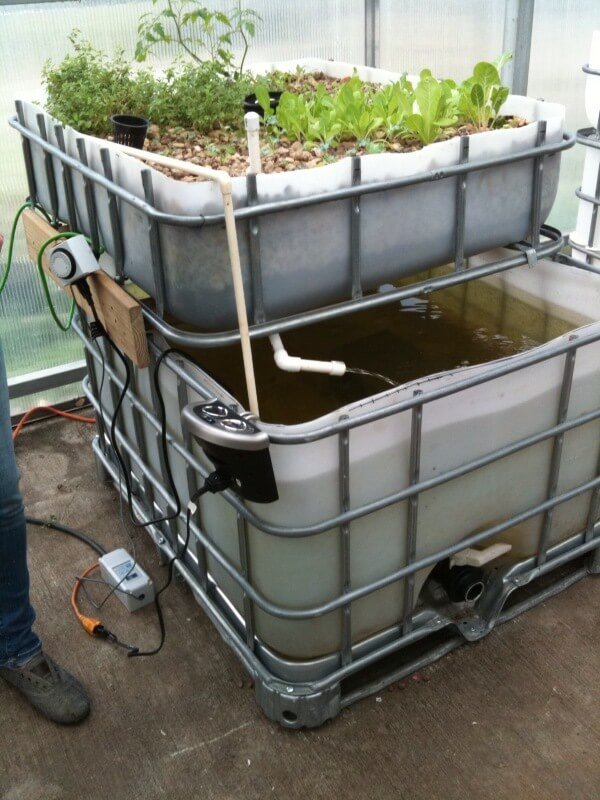

IBC tote beds

Track down an IBC tote — sometimes you can find one for free. Strip off the metal cage, cut off the top third of the plastic tank, and flip that section upside down. It rests neatly on the original cage frame, giving you a ready-made grow bed while the remaining lower portion of the tote serves as your fish tank.

55-gallon barrel beds

Barrels are another option you can often source at no cost. Just be sure to scrub one out thoroughly before using it — you don’t want any residual chemicals leaching into your aquaponics system.

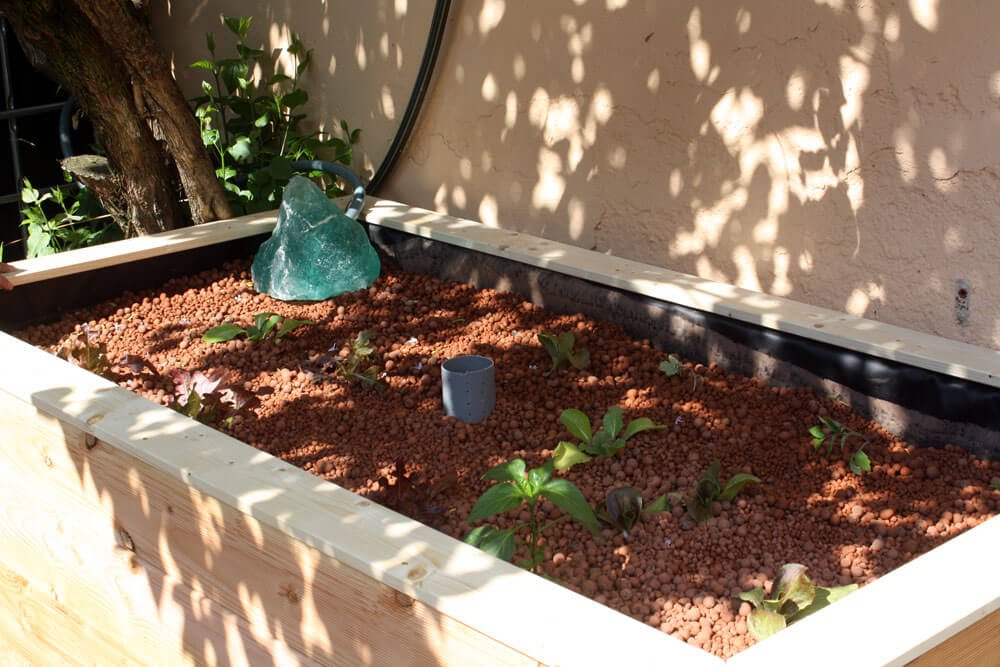

Timber frame with a pond liner

If you’ve got scrap lumber on hand and some carpentry skills, building a wooden frame is a solid option. A basic frame with a wood floor lined with plastic pond liner keeps your media and water contained. If you’re up for a bigger project, you can build your fish tank the same way, and this approach lets you pick whatever size and shape suits your space.

Free or discounted plastic tubs

Any plastic tub you can get free works fine, though you might need to combine a few to get enough growing area — it really comes down to what’s available near you. A sturdy pond liner can also double as either a fish tank or a grow bed, depending on what you need it for.

One important note: never let concrete touch your system’s water directly, since it will throw off your pH.

How many siphons does a grow bed need?

You’ll need a pump to move water from your fish tank up to the grow bed, but the most efficient way to send that water back down to the tank is through a siphon. The tricky part is figuring out how many siphons your setup actually needs — and the answer depends on which type of grow bed you’ve built.

IBC tote beds

An IBC-based grow bed sitting above your fish tank typically only needs a single siphon. These beds run around 16 square feet, and any bed smaller than that can usually get by with just as few — or fewer — siphons.

55-gallon barrels

Some builders run a single siphon across three grow beds to save on parts and cost. If you go this route, the tradeoff is that fill and drain cycles take longer, so you’ll want to make sure your fish tank’s full water volume passes through the system at least once every hour.

Internal versus external siphons

You might also be weighing whether an internal or external siphon suits your bed better. Internal siphons are generally the safer bet, since there are fewer joints where leaks can form and it’s easier to dial in the water pressure for proper drainage. That said, external siphons have their place too — they’re often used to link multiple grow beds together, which costs less than installing a separate siphon in every bed and tends to be easier to access for maintenance. Your best choice ultimately depends on how many grow beds you’re connecting. For a small, simple system, an internal siphon is usually the way to go.

Frequently asked questions about grow beds

How big should my grow bed be?

It comes down to your fish stocking density and your tank’s size — use the sizing calculation described earlier in this guide. As a general rule, aim to cycle your fish tank’s entire water volume through the grow beds and back within an hour or less. Just don’t pump it all through in one sudden burst, since that kind of shock can harm your fish; think of the one-hour target as a guiding principle for sizing rather than a literal single pump event.

How deep should the grow bed and media be?

Plan for about 12 inches of growing media, plus an extra couple of inches of headroom so a flood-and-drain cycle can work properly without spilling water or disturbing your plants. That additional buffer also helps keep algae and fungal growth in check. Altogether, aim for roughly 14 inches of total depth — going deeper than that mostly just adds difficulty to maintaining the system without adding much benefit.

How often should I clean my grow bed?

A properly maintained system with good solids filtration will largely take care of itself, but that doesn’t mean it never needs attention — especially if you start noticing waste buildup or sluggish water flow, which signal it’s time for a flush. As a general guideline, plan on a thorough cleaning about once a year. If you’re seeing buildup more often than that, it’s worth investigating the cause — common culprits include too few composting worms in the bed, missing or inadequate solids filtration, or simply overstocking your fish. Any of these can stop the bacteria in your grow bed from fully converting waste into nitrates, which creates knock-on problems throughout your system.
