Trying to plumb a curved fish tank and not sure what fitting to trust? A rigid bulkhead usually won’t help here, since most bulkheads are too stiff to conform to a curved wall. In that situation you want a flexible rubber uniseal instead. Uniseals come in the common plumbing diameters (1 inch, 3 inches, and others) and get used for several jobs around an aquaponics setup. Before comparing the uniseal and the bulkhead head-to-head, it helps to understand what each one actually is.

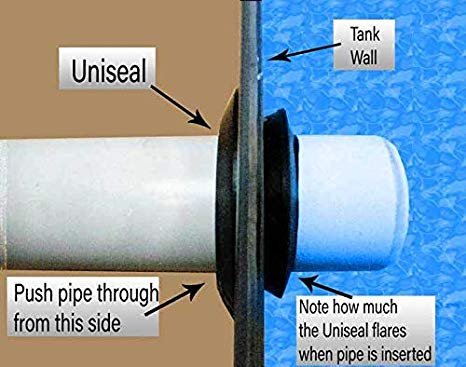

What Is a Uniseal Fitting?
A uniseal is a flexible rubber grommet designed to pass a pipe through the wall of a tank, filter housing, or other container. You install it by fitting it into a hole slightly larger than the seal itself — for instance, a 2-inch uniseal calls for roughly a 3-inch hole. Once the hole is prepped, you lubricate the pipe with a bit of soapy water and press it through the center of the seal. As the pipe is forced in, the uniseal’s inner walls squeeze down around it, forming a tight, watertight compression fit. That’s what makes uniseals such a reliable defense against leaks. They’re especially handy on curved surfaces and are sold in a range of sizes to match different pipe diameters.

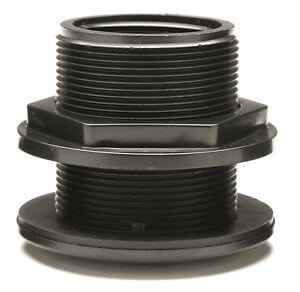

What Is a Bulkhead Fitting?
A bulkhead fitting is a rigid connector used wherever a pipe or faucet needs to pass water into or out of a tank. Like a uniseal, it requires a drilled hole in the reservoir wall, and it directs water flow to wherever it needs to go — for example, back into a fish tank. A typical bulkhead assembly includes a gasket, a fitting body, and a locking nut that clamp together to form the seal. Most are molded from PVC plastic and can tolerate temperatures as high as about 150°F (65°C).
Uniseal vs Bulkhead
With the basics of each fitting covered, it’s time to weigh them against each other directly. Choosing the right one comes down to knowing your tank surface and how the two seals perform under different conditions. Below we break down the main points of comparison.
Surface Type
For round or curved walls, the rubber uniseal has the advantage — its flexibility lets it hug the shape of the surface and grip a pipe firmly. Just remember that a uniseal only forms a proper watertight seal against something rigid, like solid PVC pipe. Pair it with a soft or flexible hose and it’s likely to give way.
Pressure Capacity
Bulkheads win on raw pressure tolerance — about double what a uniseal can take. A uniseal typically holds up to roughly 65 psi (4.4 bar), while a standard bulkhead fitting can handle around 150 psi (10.3 bar). For a typical home aquaponics system, though, a uniseal’s pressure rating is more than sufficient.
Seal Width and Size
A uniseal is built to drop into a hole about an inch larger than its own size, which makes it best suited to smaller openings — generally in the half-inch to 3-inch range. That makes it a great match for the smaller pipe diameters common in aquaponics and hydroponic setups. Bulkheads, by contrast, tend to be the better choice once you’re working with larger diameter piping.
Installation Process
Installing a uniseal is about as simple as plumbing gets — you basically just push the pipe through it. Bulkheads take a few more steps since they involve threading and gaskets, but they’re still straightforward for most DIYers to install.
Costs
Uniseals are noticeably cheaper. A 2-inch uniseal typically runs about half the price of a same-sized bulkhead. Larger bulkheads also often require separately purchased gaskets, which adds further to the total cost.
Durability
Bulkheads, usually made from brass, plastic, or PVC, tend to hold up better over the long run and resist heat and weathering more effectively. Rubber uniseals, on the other hand, can break down after extended sun exposure — prolonged heat causes them to crack and fail sooner than a PVC bulkhead would. Keep uniseal fittings shaded whenever possible to extend their lifespan.
FAQ
How big does the hole for a uniseal need to be? As a general rule, drill the hole about one inch larger than the uniseal’s own diameter. So a 2-inch uniseal calls for roughly a 3-inch hole.
Which hole saw should I use for a 3-inch uniseal? A standard hole saw or drill bit works, depending on the material you’re cutting into. For a 3-inch uniseal, set up your hole saw for a 4-inch diameter cut so the seal fits properly once installed.
Can a uniseal handle heat? Not particularly well — most uniseals conduct heat poorly and break down faster when regularly exposed to it. They’re best reserved for pond and aquaponics plumbing rather than anything running hot.
Where can I buy uniseal fittings? Uniseals are widely available online or at your local hardware or DIY store. A standard 3-inch tank adapter is fairly inexpensive.
Where can I buy bulkhead fittings? Bulkheads are also easy to find online or in stores, though a 3-inch PVC bulkhead will typically cost more than the equivalent uniseal. That higher price usually reflects the included locking nuts and gaskets.
Conclusion
So which fitting comes out ahead? It really depends on which factors matter most to you. In most home aquaponics builds, people lean toward uniseals — they’re quick to install, handle typical system pressures just fine, and won’t strain your budget.
